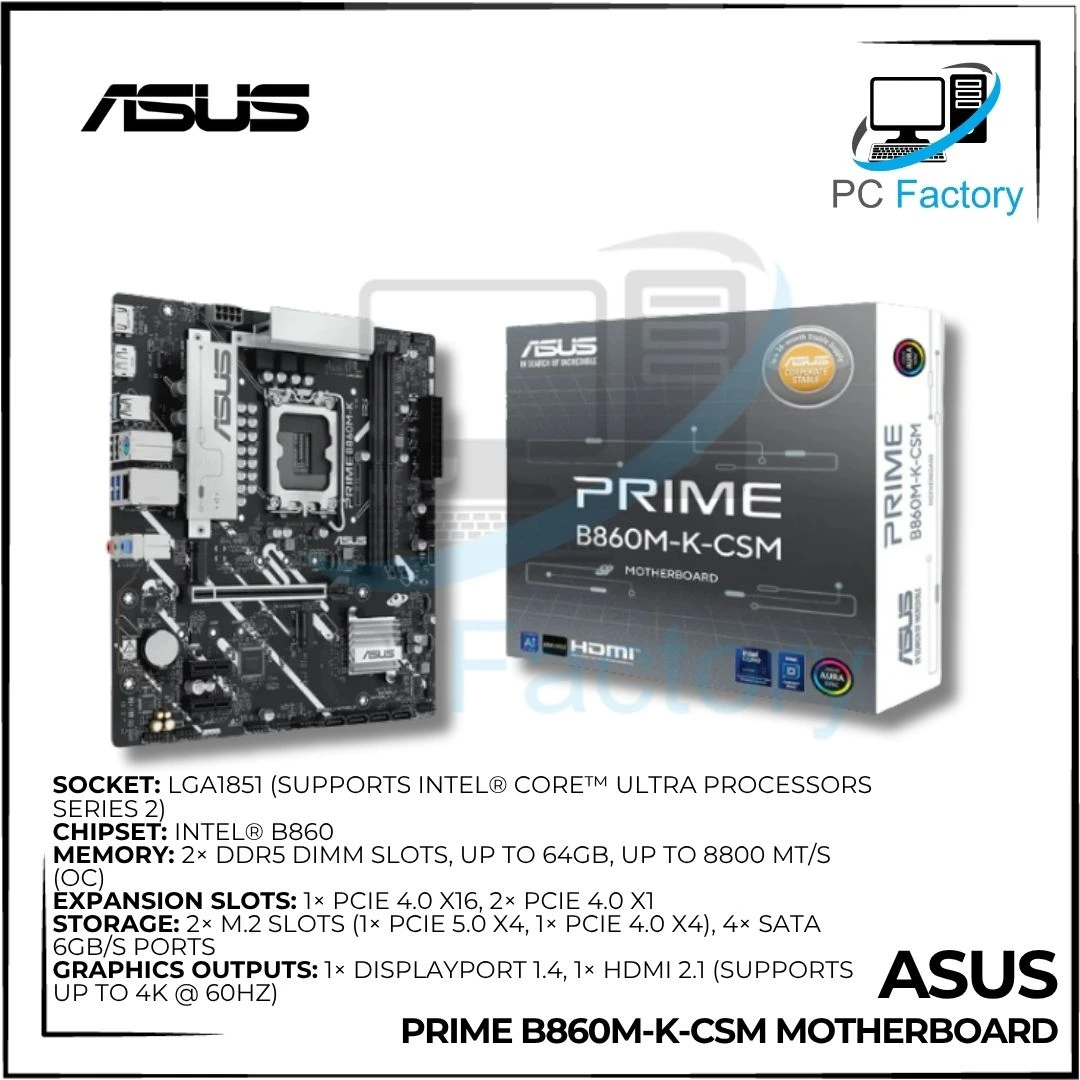

ASUS PRIME B860M-K-CSM MOTHERBOARD

• CPU Support: Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket

• Chipset: Intel® B860

• Memory: 2 x DDR5 DIMM slots, up to 128GB, supports speeds up to 8800+ MT/s (OC), dual-channel architecture, supports Intel® XMP and ASUS Enhanced Memory Profile III (AEMPIII)

• Graphics Outputs: 1 x HDMI™ 2.1 (4K@60Hz), 1 x DisplayPort 1.4 (4K@60Hz)

• Expansion Slots: 1 x PCIe 4.0 x16 slot (CPU), 2 x PCIe 4.0 x1 slots (Chipset)

• Storage: 2 x M.2 slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4), 4 x SATA 6Gb/s ports

• Ethernet: Realtek 2.5Gb Ethernet with ASUS LANGuard

• USB Ports:

  • Rear: 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 3 x USB 2.0 Type-A

  • Front: 1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)

• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC, with audio shielding, premium capacitors, and dedicated audio PCB layers

• Cooling: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, supports ASUS Fan Xpert 2+

• RGB Lighting: Supports ASUS Aura Sync with 2 x Addressable Gen2 headers and 1 x Aura RGB header

• Form Factor: Micro-ATX (24.4cm x 22.2cm)

• Operating System Support: Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Special Features:

• ASUS 5X PROTECTION III: Includes DIGI+ VRM, LANGuard, Overvoltage Protection, and SafeSlot Core+

• ASUS Q-Design: Features Q-DIMM, Q-LED Core, and Q-Slot for easier installation and troubleshooting

• ASUS Control Center Express: Integrated IT monitoring and management software for efficient system management

• UEFI BIOS: User-friendly interface with EZ Mode for beginners and Advanced Mode for experienced users
